Keymaster Poldiag – Mercedes Benz Audi VW Programmer – Full Complete Set

The Keymaster Poldiag is the LATEST PROGRAMMER for Mercedes Benz, Audi, VW. The Full Complete Set set with program activation for all supported brands and modules

This is the only equipment that does not require paying tokens when calculating the password or key.

MAIN FUNCTIONS – MERCEDES-BENZ:

– No tokens required
– Unique functions
– Supports all types of stacks, steering wheel locks, keys, engine controls in Mercedes cars.
– Everything is done via OBD or IR
– Add, fix, use the ignition, ELV steering lock, engine control, key
– ALL KEY LOST at no extra cost.
– Unlimited Key Calculations
– Fast key generations
– No soldering or desoldering required

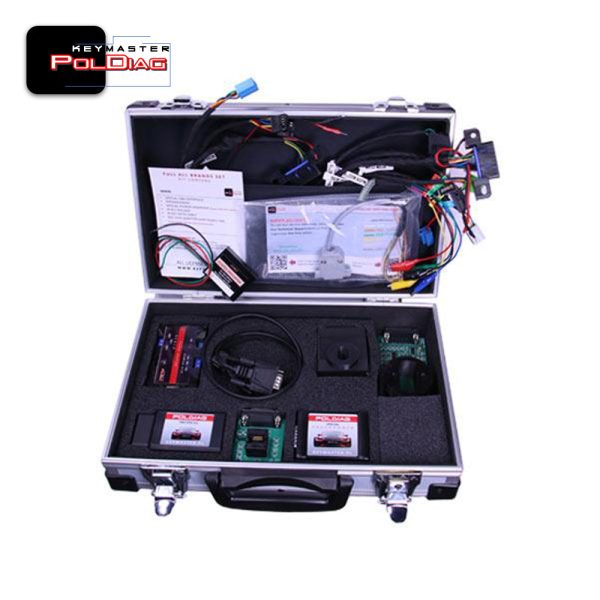

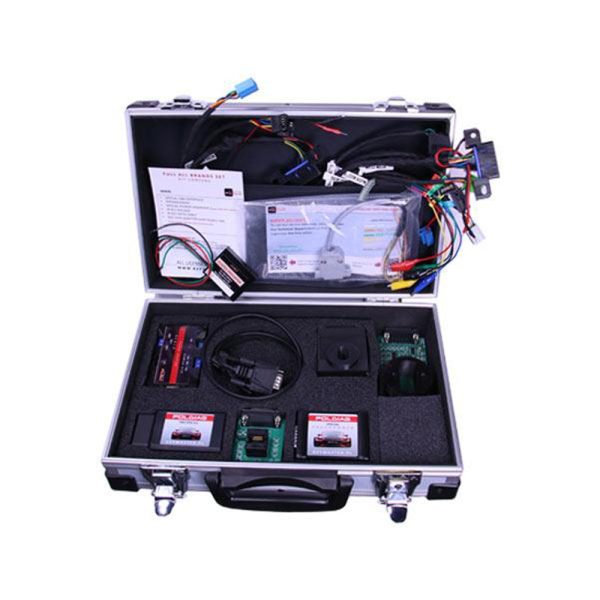

Includes:

– POLDIAG – Keymaster – Key Programmer
– POLDIAG – Keymaster – Key OBD Interface
– POLDIAG – Power Relay Circuit Board
– POLDIAG – IR KEY – Circuit Board
– POLDIAG – MCU Adapter – Circuit Board
– Mercedes Benz – 3-Button Programmable Smart Key
– IR reader cable
– Mecedes Benz Gateway Emulator – for w164, w211, w2009 on table
– Mercedes Adapter Cable 8 in1 for convenient connection of stations, elv locks on the table
– VAG Engine ECU module – Activation
– VAG Dashboard IMMO Data Module – Activation
– VAG ELV & Kessy Module – Activation
– VAG BCM2 Module – Activation

OBD IR Features:

(in the car or after connecting the cable to the ignition switch, lock, motor controller)
– Reading, writing, cleaning EIS on OBD or IR connector
– Calculating passwords
– Modification of data saved in EIS, ELV, ECU, VIN, KM, TP, Hash
– Reading information from the key after IR
– BE keys (also available from us) – have the possibility of saving, erasing and cleaning without risk. OBD IR
– Restoring stations or changing the content restoring to the factory state
– Cloning of stations – IR downloading
– VIN change
– Erasing TP
– Personalization of new bolts.

DOES NOT REQUIRE ANY SOLDERING,
There is no need to remove the ignition housing
Everything is done via OBD IR in the car or after connecting the adapter to the ignition plug, lock, motor controller …

Functions of reading, deleting, writing.
Ignition locks, ELV interlocks, engine controls, transmission controllers.

Readout, writing, renewing ALL types of FBS3 stations on the OBD or IR interface (tested on 99% of stations up to 2014)
Personalization, activation of renewed items on the table.
Reading the password from the ignition switch, key without additional charges. No limits
Reading, renewing, modification of data stored in steering locks.
Read, renew drivers 7g Tronic – cooldown about 2 minutes !!
Read, renewed engine controllers.
Read, renew ISM ESM
COPYING CLONING all types of stations with NO need to solder or open the ignition.

Keys

EMERGENCY START all key lost- Possibility of emergency start-up in case of lost all keys to get to the workshop
Reading the password directly from the key (V51, V57)
Supports all types of keys: MOTOROLA, NEC, BGA, BE, Chines, VVDI types,
Reads, deletes renews USED NEC, BE, Motorola keys
BE keys (also available with us) – have the option to change the frequency from the program level (315, 433Mhz) and
MULTIPLE save, delete, clean – Everything is done over IR in a few seconds !!
EMULATION function – Checking the path of the key, resetting the key counter,

ELV ESL – support for steering lock – bolt
– Reading ESL by OBD (K-line)
– Restoring ESL Lock (cleaning used)
– ESL exchange
– VIN programming
– TP cleaning
– Automatic adjustment of the ESL Lock
– Checking the operation of ESL
– Repair ESL NEC W204 (fatal error: 0xAA) and older on Morotoli
– Programming and cleaning the emulator (renewal)

Reading Programming CGW ZGW EEPROM and flash in the following models:

– A-Class (W169)
– B-Class (W245)
– C-Class (W204)
– E-Class (W211)
– E-Class (W212)
– GLK (X204)
– CLK (W207)
– CLS (W218)
– CLS (W219)
– Maybach (W240)
– SLK (R171)
– SLR (R199)
– SLS (R197)
– GL (X164)
– M-Class (W164)
– R-Class (W251)
– SMART
– S-Class (W221)
– CL (W216)

Supported models:

– W164
– W164 2009-
– W166, 197, 212, 218, 246
– W169, 209, 211
– W172, 204, 207, 212
– W203, 463, 639
– W202, 208, 210
– W215, 220
– W230
– W216
– W221
– W639 2009-

These models support counting the password after OBD:

– W164
– W164 2009-
– W166, 197, 212, 218, 246
– W169, 209, 211
– W172, 204, 207, 212 (old, with ELV)
– W216
– W221
– W639 2009-

Driver renewal: ECU engine 7-tronic ISM transmission gear selector –
Correction of the meter after OBD
– C (W204), GLK (X204), CLK (W207), E (W212), SLS (W197), CLS (W218)
– R-Class (W251), GL (X164), ML (W164)
– E-Class (W211), CLS (W219)
– S-Class (W221), CL (216)
– W166, W172, W246, W231
– W205
