Description

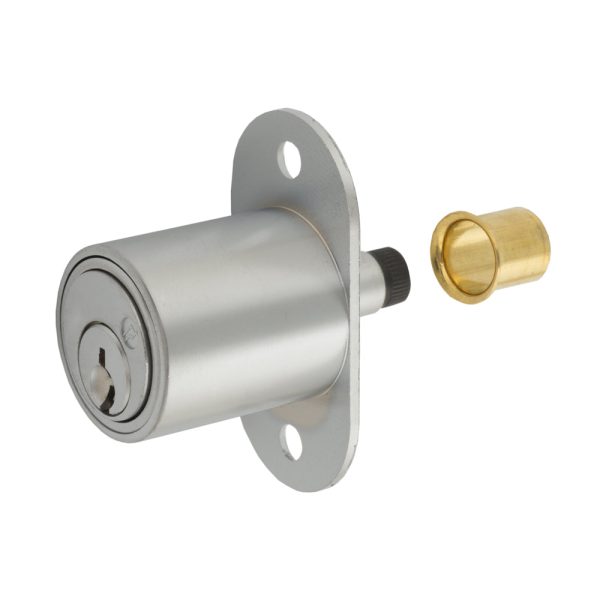

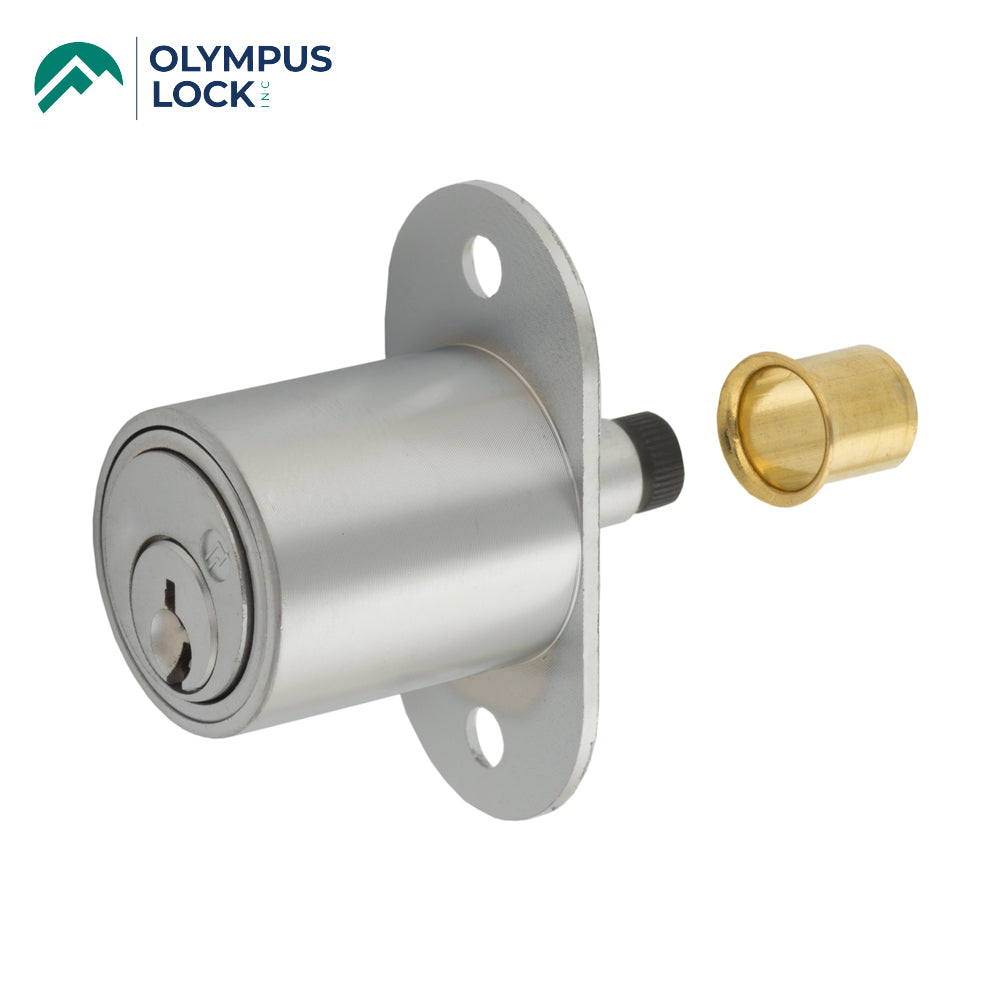

OLYMPUS LOCK – 300SD – Sliding Door Plunger Lock – N Series National – 26D – Satin Chrome – KA 107

Feature:

• Sliding door plunger lock
• Speed release mechanism for easy rekeying
• Solid brass pin tumbler cylinder drilled for 5 pins
• For material thickness: 7 8
• Barrel diameter: 1
• Includes strike locator to easily position thimble strike on inner door
• Includes 10-24 machine threaded bolt extender for varying gaps between bypassing doors
• 26D, US3 or 10B finish
• US Patent Nos: 4,920,774, 5,121,619

• Specification:

  • Keying: Can be keyed together with otherN Series locks
  • Rekeyable: Easily rekeyable via speed-release cylinder release mechanism
  • Standard function: Key removable in locked or unlocked position.
  • Body: Zinc die cast
  • Cylinder: Solid brass, pin tumbler
  • Cylinder length: 1
  • Barrel diameter: 1
  • Finish: 26D, US3 or 10B

  • Keying Information:

    • Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
    • Keys: Includes 2 keys per lock
    • Stock keying: KD KA – 4 pin standard
    • Stock KA#: 107
    • Masterkeyed: 5 pin standard
    • Grand masterkeyed: Available
    • Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)
    • Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

    • Included Accessories:

      • 34-9 matching thimble strike
      • 10-24 machine thread bolt extender for varying gaps between bypassing doors
      • 10-24 machine thread strike locator

      • MPN: 300SD-26D78-101
