Description

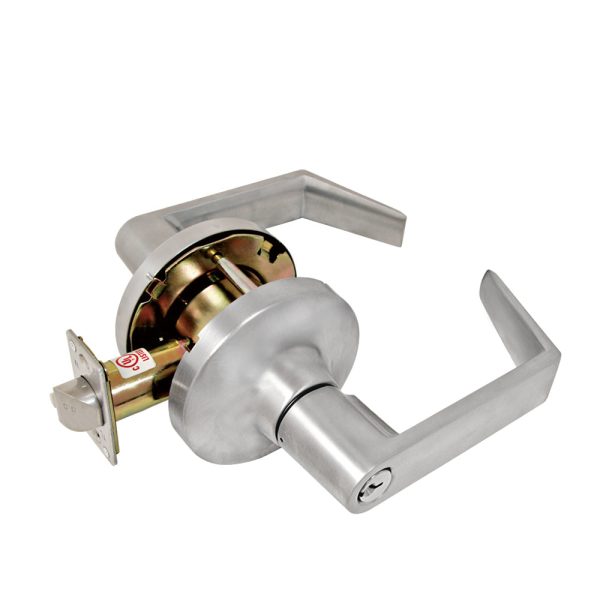

TownSteel – CDC-84-S – Commercial Lever Set Handle – Clutch Lever Set – 2-3 4 Backset – Satin Chrome – Classroom – Grade 1

The CDC84S Series Cylindrical Lockset is ANSI BHMA A156.2-2011 Grade 1 certified and UL 10C 3-Hour rated Clutched lever trim. Independent torsion spring design provides effective lever support. Most BHMA functions are available. Easy installation

Specifications

Lock Function		ANSI F84 Classroom
Handling		Non-Handed
Door Thickness		1-3 8″-2″
Backset		2-3 4″ standard,
Faceplate		Stainless Steel, 1-1 8″ x 2-1 4″
Latch Bolt		Stainless steel, 1 2″ throw, deadlocking on keyed functions
Strike		ASA, 1-1 4″ x 4-7 8″ x 1-5 16″ standard
Cylinder		6 pin brass, Schlage “C” keyway, 2 keys per cylinder
Keying		Keyed different – KD (standard)
Trim Style		Sentinel(S)
Finish		626 – 26D – Satin Chrome
Certifications		ANSI BHMA – A156.2-2011 4000 Series Grade 1 Certified UL – UL 10C 3-Hour Rated ADA – Meet Requirements of The Americans with Disabilities Act BAA – Meet Guidelines of The Buy American Act CSFH – Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty		1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Template and Installation Guide

Return Policy:

1. We only accept returns of sealed products.

2. To return a defective item, please contact TownSteel directly at 877-858-088, [email protected] or click here to visit their support page. Once they give you a support ticket contact Locksmith Keyless for the return.
