Description

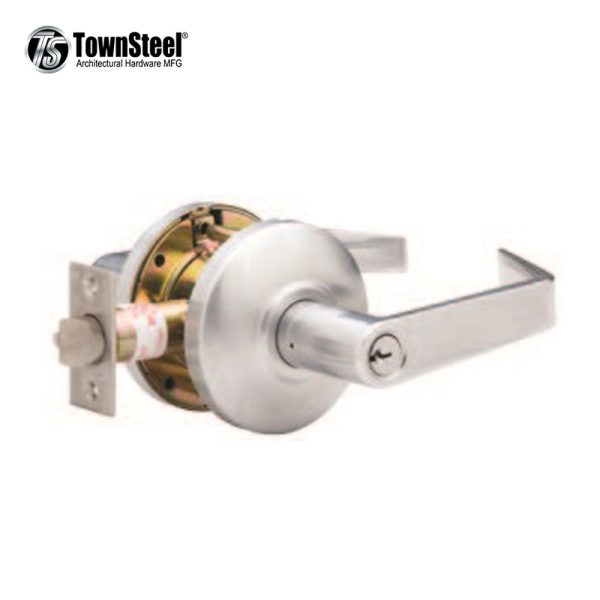

TownSteel – CSRC-86-S – Commercial Lever Set Handle – Clutch Lever Set – 2-3 4 Backset – Satin Chrome – Storeroom – Grade 2

The CSRC-86-S Series cylindrical lockset is heavy duty grade 2, and UL 10C 3-hour rated. It offers flat rose featuring clutched lever trims.

Specifications

Lock Function		ANSI F86 Storeroom
Handling		Non-Handed
Door Thickness		1-3 8″-2″
Backset		2-3 4″ standard,
Faceplate		Stainless Steel, 1-1 8″ x 2-1 4″
Latch Bolt		Stainless steel, 1 2″ throw, deadlocking on keyed functions
Strike		ASA, 1-1 4″ x 4-7 8″ x 1-5 16″ standard
Cylinder		6 pin brass, Schlage “C” keyway, 2 keys per cylinder
Keying		Keyed different – KD (standard)
Trim Style		Sentinel(S)
Finish		626 – 26D – Satin Chrome
Certifications		ANSI BHMA Meets or exceeds A156.2-2011 4000 Series Grade 2 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act BAA Meet Guidelines of The Buy American Act CSFH Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty		1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide

Return Policy:

1. We only accept returns of sealed products.

2. To return a defective item, please contact TownSteel directly at 877-858-088, [email protected] or click here to visit their support page. Once they give you a support ticket contact Locksmith Keyless for the return.
