Description

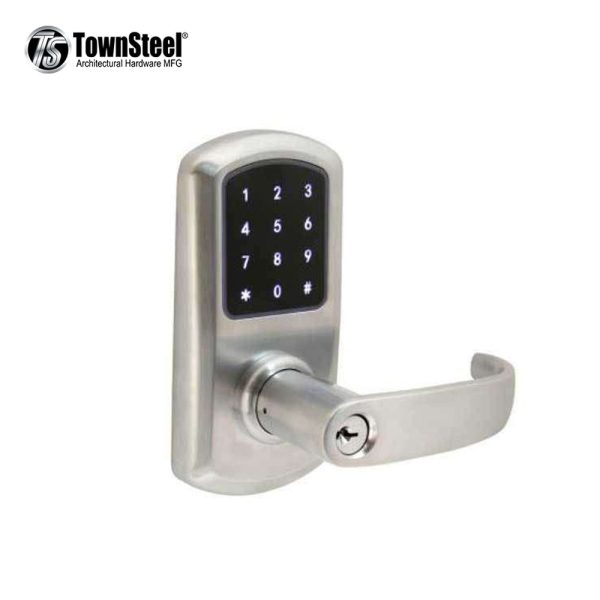

TownSteel – e-Elite 5000 Series – Electronic Push Button Lever Set – Bluetooth – 2-3 4″ Backset – Rigid Lever Set – Satin Chrome – Key Override – Grade 1

The e-Elite 5000 is a modern, low profile lock with stainless steel latch bolt providing easy keyless access to your home using a highly responsive, 12-key illuminated touch and fingerprint resistant keypad programmable with up to 400 user codes interchangeable with RFID keycards stickers. Mechanical key override lock is available as an extra back-up. The e-Elite 5010 comes with Bluetooth BLE technology, lock programming with the TownSteel app TSE Home.

Apple iOS – Link HERE or Android – Link HERE

The e-Elite 5000 series is quick and easy to program

Features

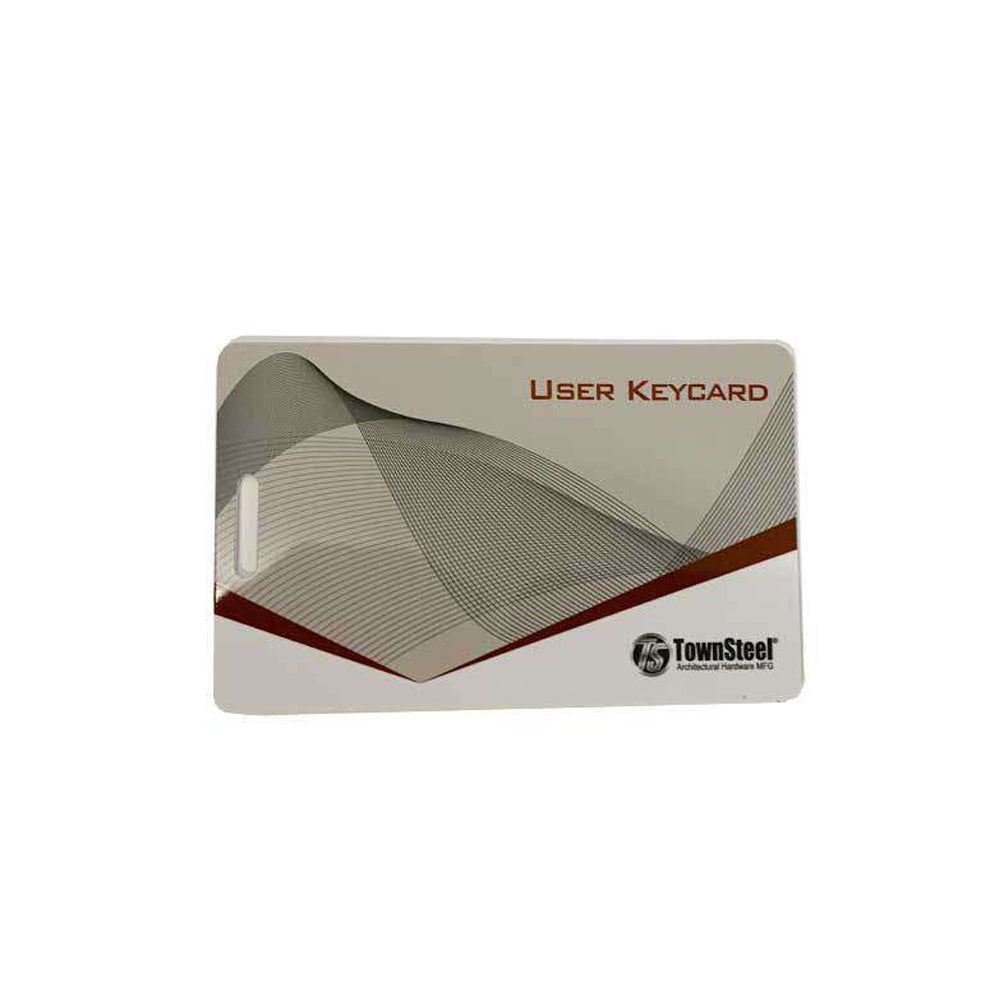

– 400 user codes interchangeable with RFID keycards stickers
– Code Length: 6 to 10 digits, with anti-pry
– Powered with 4 AA Alkaline batteries, up to 1 year battery life
– System Settings: Passage Mode, Verification Mode, and Sound Adjustment
– Bluetooth BLE technology allows programming through our mobile app

TownSteel Gateway Required with Bluetootth BLE and Wifi RF – Lock Features. CLICK HERE

Specifications

Door Thickness:		1-3 4”
Backset		2-3 4” standard
Trim		Rigid Sentinel Lever
Latch bolt:		Stainless steel, deadlocking, ½”throw
Faceplate		1-1 8“x 2-1 4”
Strike		ASA strike standard, 1-1 4” x 4-7 8”
Key Override		Yes
Cylinder		6 pin Schlage C keyway, standard
Power Supply		4AA batteries  – No Hard wiring
Battery Life		Up to 1 year w Low Battery Alert
Certifications		ANSI BHMA – A156.2-2011 4000 Series Grade 1 Certified UL – UL 10C 3-Hour Rated ADA – Meet Requirements of The Americans with Disabilities Act BAA – Meet Guidelines of The Buy American Act
Manufacturer Warranty		1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide

Return Policy:

1. We only accept returns of sealed products.

2. To return a defective item, please contact TownSteel directly at 877-858-088, [email protected] or click here to visit their support page. Once they give you a support ticket contact Locksmith Keyless for the return.
