Description

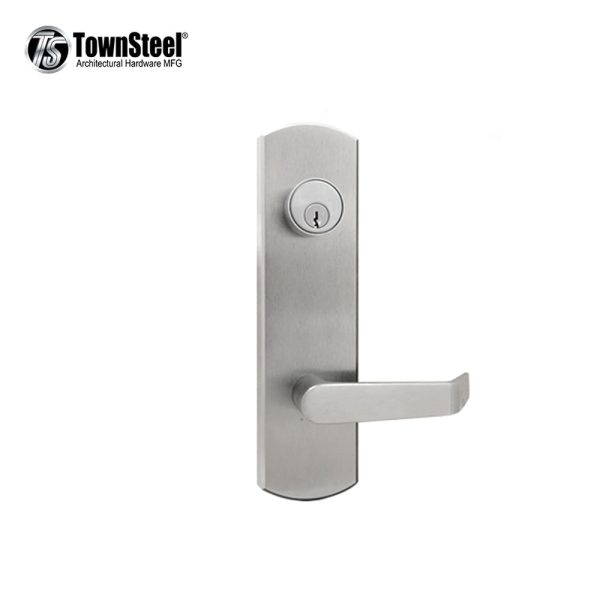

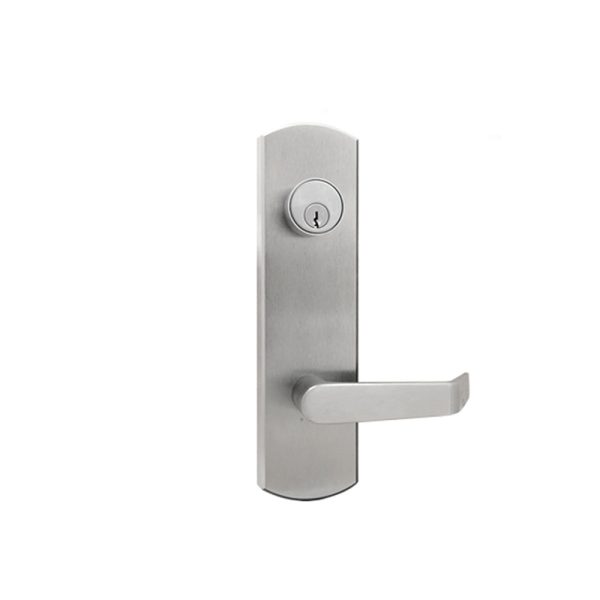

TownSteel – Escutcheon Lever Exit Trim – 2-3 4 Backset – for 8900 & 9700 Kestros Exit Devices – Entrance Function – Satin Chrome – Grade 1 – KES-908R-SRHR626-SC

Specifications

Application		Escutcheon Lever Exit Trim
Function		Entrance Function – Key locks or unlocks latch bolt
Handling		Field Reversible
Door Thickness		1-3 4″ to 2-1 4″
Backset		2-3 4″ standard
Door Prep		Fits and covers 161 cutout
Trim		Escutcheon Lever Exit Trim
Escutcheon		Forged brass, 2-5 16″ x 8-1 2″
Lever		Cast zinc, 4-3 4″ long
Cylinder		Brass, 6 pin
Keying		Schlage “C” keyway, 2 keys per cylinder
Finish		626 – 26D – Satin Chrome
Certifications		ANSI BHMA – A156.2-2011 4000 Series Grade 1 Certified UL – UL 10C 3-Hour Rated ADA – Meet Requirements of The Americans with Disabilities Act BAA – Meet Guidelines of The Buy American Act CSFH – Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty		1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Product Catalog

Return Policy:

1. We only accept returns of sealed products.

2. To return a defective item, please contact TownSteel directly at 877-858-088, [email protected] or click here to visit their support page. Once they give you a support ticket contact Locksmith Keyless for the return.
