Description

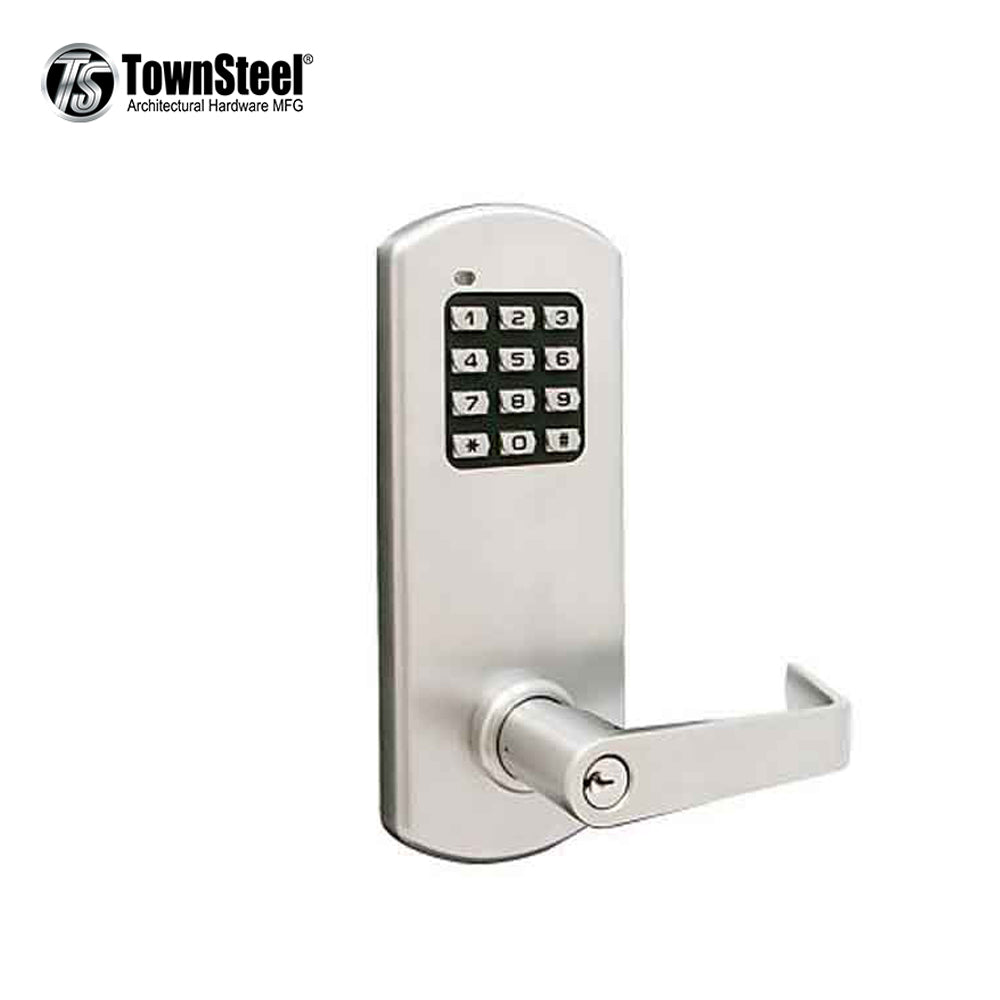

TownSteel – XCE2020S – Electronic Push Button Lever Set – Clutch Lever Set – Satin Chrome – Grade 1

The XCE2020S  is a standalone electronic function lock that provides keypad technology integrated with ANSI Grade 1 heavy duty cylindrical lockset for greater security. Keypad technology simplifies the management of the system and provides ease of use. Maximum code capacity per lock includes 1 master code, 10 manager codes, 90 user codes and 5 service codes. It provides two remote control terminals; one for a fire alarm system and the other for remote release by push button.

The XCE2000 Series is quick and easy to program

Watch Programming Video Here

Specifications

Master Code Capacity per Lock		1
User Code Capacity Per Lock		90
Manager Code Capacity Per Lock		10
Service Code Capacity Per Lock		5
Communication		Multi-colored LED and Sound
Power Supply		4AA batteries
Battery Life		Up to 2 years
Operating Temperature		-31° to 151° F (-35° to 66°C)
Door Thickness		1-3 4”-2”
Backset		2-3 4” standard,5”optional
Trim		Outside lever has clutch mechanism
Trim Style		Sentinel
Strike		ASA Strike standard, 1-1 4” X 4-7 8”
Finish		626 – Satin Chrome
Latch Bolt		Stainless Steel, deadlocking, ½” projection
Faceplate		1-1 8” x 2-1 4”
Escutcheon		Wrought steel or zinc alloy, plated to match finish symbols
Lever		Cast zinc or stainless steel, plated to match finish symbols
Cylinder Specifications		6 pin Schlage “C” Keyway, standard
Certifications		ANSI BHMA A156.2 — A156.2-2011 Grade 1 certified ANSI BHMA A156.25 — Meets or exceeds all applicable requirements UL ULC — UL 10C 3-hour rated BAA — Meets guidelines of the Buy American Act ADA — Meets requirements of the Americans with Disabilities Act RoHS — Meets requirements of EU RoHS Directive 2002 95 EC
Manufacturer Warranty		1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide
